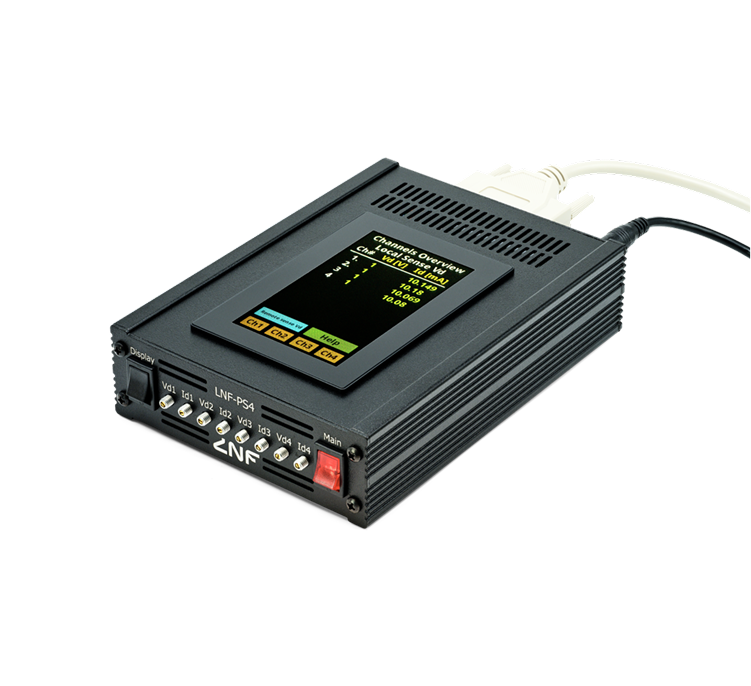

LNF-PS4

LNF-PS4

  • Function 4-Channel Low Noise HEMT Power Supply
  • Output Adjustable drain voltage (×4); auto gate voltage regulation per channel
  • Display LCD (Vds, Vg, Ids per channel)
  • Power Source LNF-PBA or LNF-PBA-HP
  • Compatible With All LNF LNAs with 2-pin turret or Nano-D DC connector
  • Compact 4-channel power supply designed specifically for LNF LNAs. Each channel independently regulates drain voltage and automatically adjusts gate voltage to maintain a set drain current, with Vd, Vg, and Id all displayed on the LCD per channel
  • Redesigned from ground up with new low-noise electronic components; improved performance over previous LNF power supply models
  • Drain voltage sense function per channel compensates for bias wire resistance, important in mm-wave test rigs where cable lengths are significant
  • Display can be switched off for ultra-low noise operation when measurement sensitivity is paramount
  • Powered by LNF-PBA or LNF-PBA-HP Power Block. Integrates directly into the LNF accessory ecosystem alongside the LNF-NANO4p and LNF-NANO9M connectors
Request Quote
