Room Temperature Low Noise Amplifiers

Select Model

LNF-LNR55_96WA_SV

LNF-LNR55_96WA_SV

  • RF Bandwidth 55 – 96 GHz
  • Noise Temperature 280 K
  • Noise Figure 2.86 dB
  • Gain 27 dB
  • DC Power V = 5V, I = 40mA
  • RF Connectors WR12 waveguide
  • 55 to 96 GHz coverage using WR12 waveguide packaging; pushes InP HEMT amplification capability.

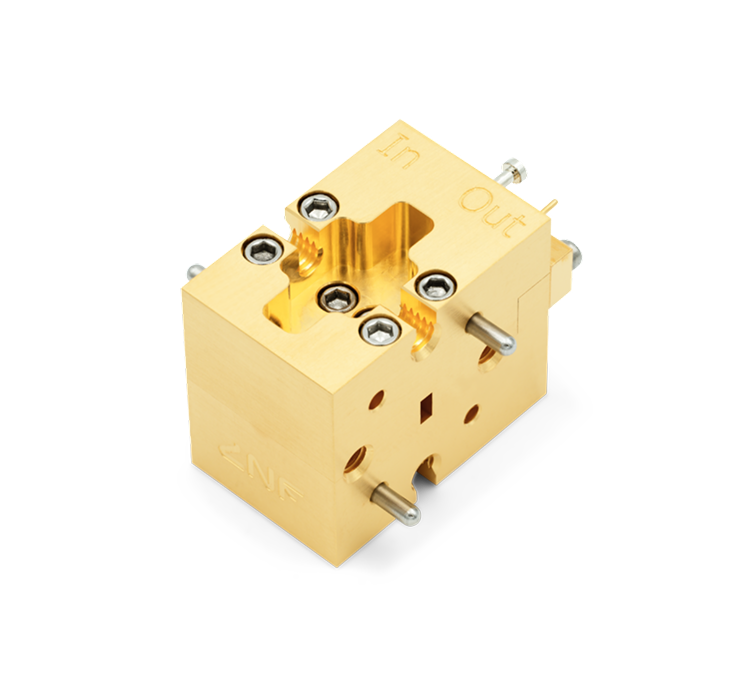

  • Compact gold-plated aluminium waveguide module (14.92 × 23.47 × 19.20mm), WR12 RF connectors, 2-pin turret DC connector
  • MMIC InP HEMT technology, consistent unit-to-unit performance across the full 41 GHz covered bandwidth
  • Must be operated in a vacuum environment when below the dewpoint
  • Tested at 296 K before delivery. Test report included
Request Quote
